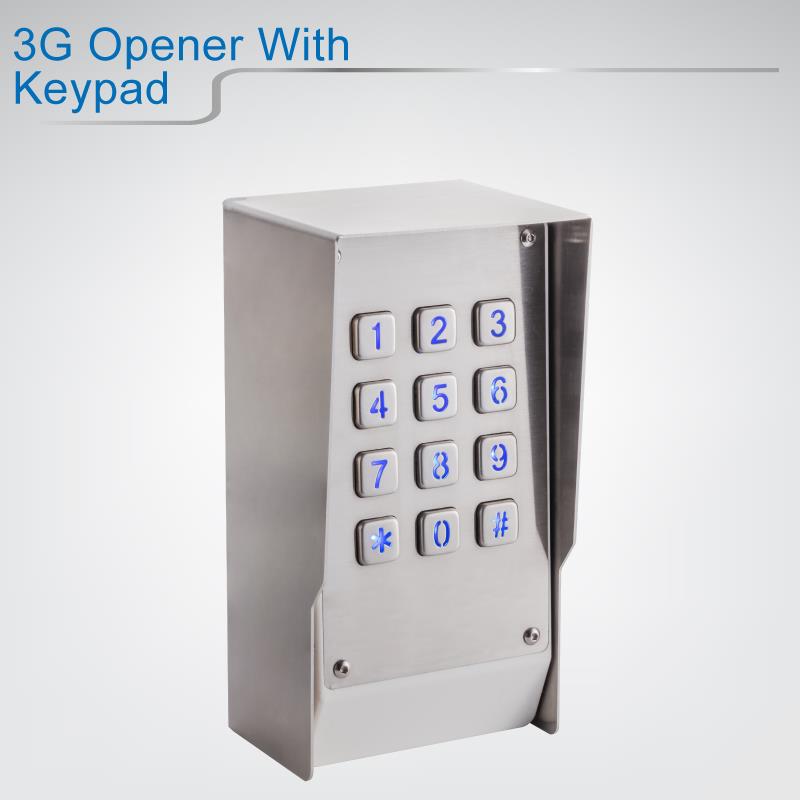

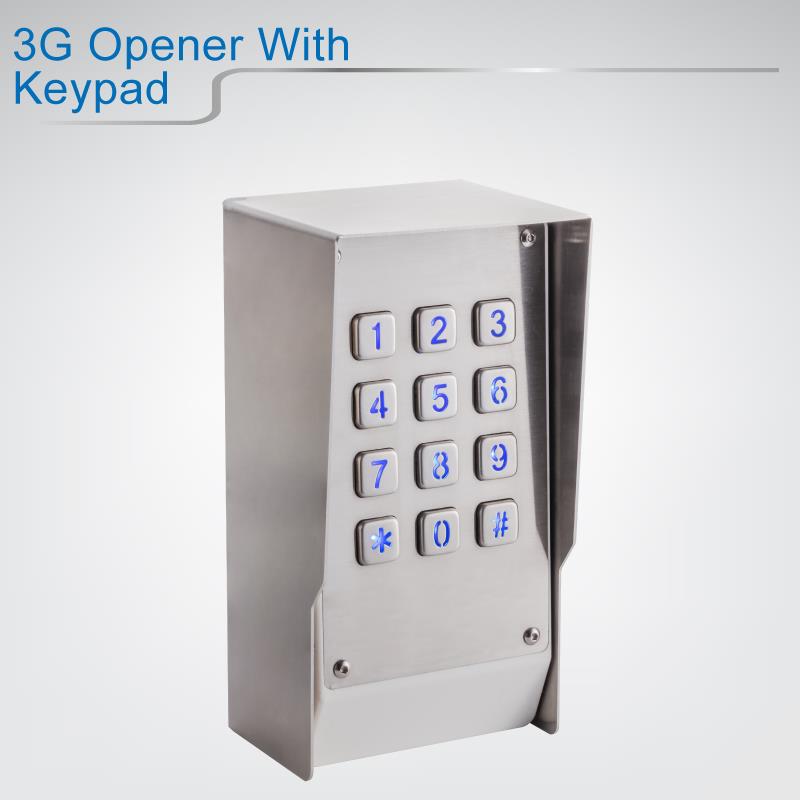

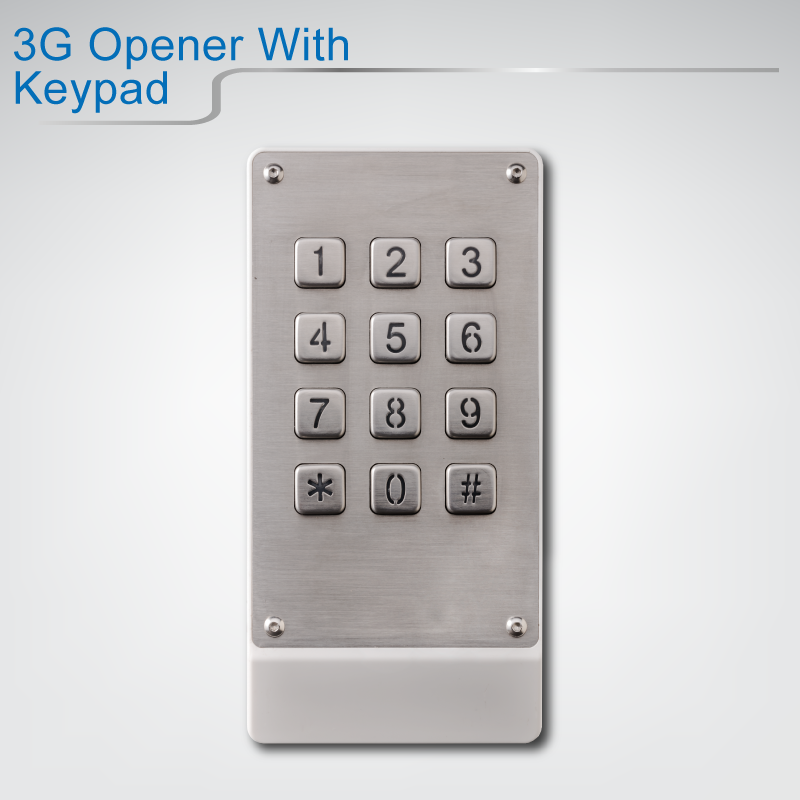

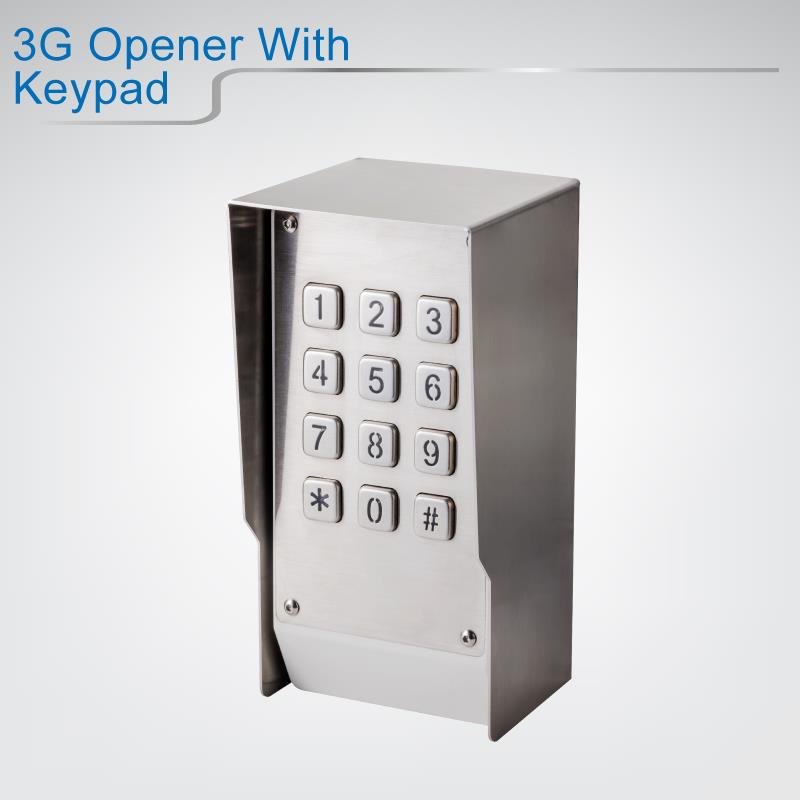

SS1401D2 product is 3G Digital GSM Access Control. It mainly uses the 3G network. The main function can use keypad to enter the password to open the door. Different password can open different door locks, can control a total of two locks. Other features: Use the phone to open the door (it will turn off the call to avoid the cost). It can also send SMS to open the door.

Model :SS1401D2

3G Digital GSM Access Control Features

Open the door via PIN code (384 user PIN codes) or Call/SMS remotely
Log records sent via SMS/Email
SMS alert when input is triggered
Support 2 output relays
Wrong PIN code entry limit and will emit alert sound
Anti-Vandal and stainless-steel keypad with blue backlight design

specification


Power supply	AC or DC 12V-24V/1A
Power consumption	12V input Max. 50mA/Average 50mA
Band Frequency	3G Quad bands 850/900/1900/2100 MHz
SIM Card	Standard mini SIM Card
Relay Rating	10A/240VAC
Antenna	50 Ω SMA Antenna interface
Temperature range	-20-+60°C
Humidity range	Relative humidity 90% (condensation free)
